FAG NU217E Single Row Cylindrical Roller Bearings
150mm Outer Diameter | 85mm Inner Diameter | For Heavy-Duty Applications | 2KG
Product Specifications
| Attribute |
Value |
| Stock |
Based On Quantity |
| Model No |
NU217E |
| Speed of grease lubrication |
3600 R/min |
| Rings Material |
100Cr6 / GCr15 |
| Vibration Level |
V1, V2, V3, V4 |
| Basic Static Load Rating(Cor) |
192 kN |
| Speed of oil lubrication |
4500 R/min |
| Outer Diameter |
150mm |
Product Overview

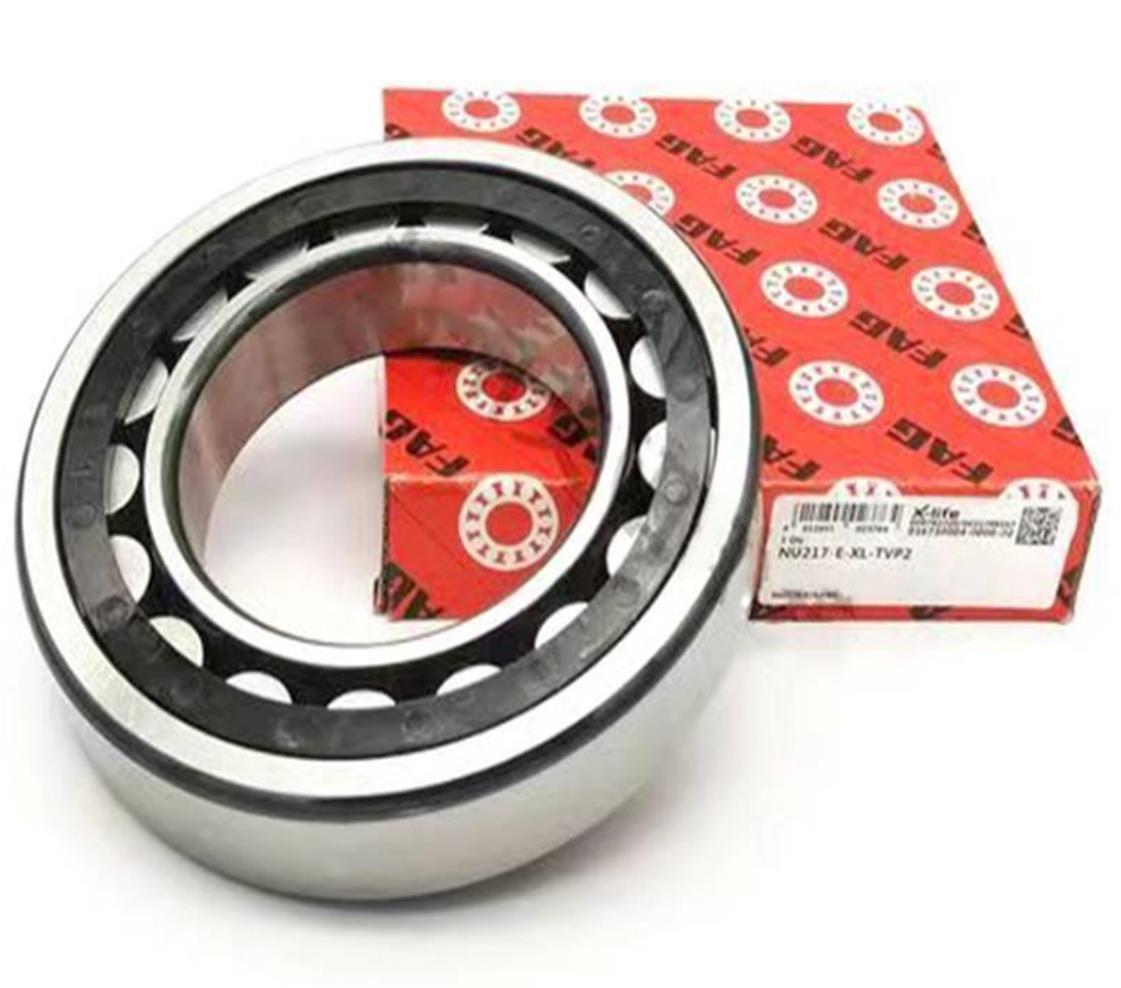

The FAG NU217E cylindrical roller bearing delivers precision performance for demanding industrial applications. Engineered for heavy-duty use, this single row bearing features a 150mm outer diameter and 85mm inner diameter, providing reliable operation under high-speed and heavy-load conditions.
Key Features
- Basic Dynamic Load Rating (Cr): 158 kN
- Basic Static Load Rating (Cor): 192 kN
- High-quality rings material: 100Cr6 / GCr15
- Width: 28 mm
- Single row design
- Operating temperature range: -30°C to +120°C
- Multiple vibration levels available: V1, V2, V3, V4
Technical Parameters
Inner Diameter: 85mm
Outer Diameter: 150mm
Width: 28mm
Speed of oil lubrication: 4500 R/min
Speed of grease lubrication: 3600 R/min
Applications
Ideal for various industrial applications including machinery, automotive systems, and heavy equipment where precision and reliability are essential. Certified to ISO9001-2016/SGS standards for quality assurance.
Customization Options
Available from multiple brands including FAG, SKF, and INA. Manufactured in China, Germany, or Sweden with flexible customization options.
Minimum Order Quantity: 10 pieces
Price Range: $50 to $150 per unit
Delivery Time: Based on stock availability
Supply Capacity: 7.5 million pieces per month
Support & Services
- Installation guidance and recommendations
- Troubleshooting assistance
- Maintenance best practices
- Training programs available
- Warranty coverage for product defects
Packaging & Shipping
Each bearing is securely packaged in sturdy cardboard boxes to ensure safe delivery. Worldwide shipping available with tracking information provided.
Frequently Asked Questions
What brands are available for this bearing?
Available brands include FAG, SKF, and INA.
What is the model number?
The model number is NU217E.
Where is this bearing manufactured?
Manufactured in China, Germany, or Sweden.
What certifications does this bearing have?
Certified to ISO9001-2016/SGS standards.
What is the minimum order quantity?
Minimum order quantity is 10 pieces.
