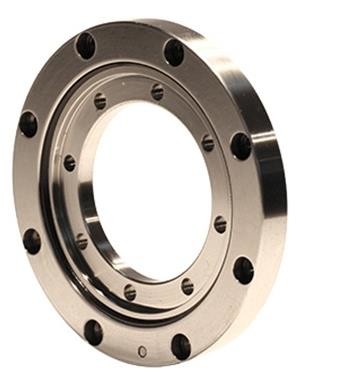

20x70x12mm Cross Cylindrical Roller Bearing , Lightweight Spherical Crossed Bearing
| Place of Origin | China |
|---|---|
| Brand Name | DJTECH |
| Certification | ISO9001-2015/SGS/BV/CE/IAF |
| Model Number | DRU42.... |
| Minimum Order Quantity | 50 |
| Price | Negotiable |
| Delivery Time | about 3~4weeks |
| Payment Terms | T/T |
| Supply Ability | 250000pcs/per day |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | SAE52100、AISIE52100、UNSG52986 Steel | Dimension | 20x70x12mm |
|---|---|---|---|
| Shoulder | DS:37,Dh:47 | Rated Load | C:7.35KN, C0:8.35KN |
| N.W. | 0.29KG | Product Name | Cross Roller Bearing |
| Sealed Type | Open | Cage | Bearing Steel |
| High Light | 20mm Cross Cylindrical Roller Bearing,12mm Cross Cylindrical Roller Bearing,Lightweight Spherical Crossed Bearing |
||
Product Description
Cross Roller Bearing , 20x70x12mm Rated Load C : 7.35KN , C0 : 8.35KN
Product description:
Cross roller bearing is a type of bearing where cylindrical rollers are vertically arranged in a cross pattern between the inner and outer rings of the bearing. The rollers are in line contact with the raceway and have good rigidity. The elastic deformation of the bearing under load is very small, and it can withstand both radial load, axial load, and torque load. It is particularly suitable for situations that require high rigidity and high rotational accuracy.
The size of the inner and outer rings is minimized, especially the extremely thin type, which is a small size that is close to the limit and has high rigidity. Using this type of bearing can simplify the structural design of the shaft system. So it is most suitable for the joint or rotating parts of industrial robots, rotating workbenches of machining centers, robotic arm rotating parts, precision rotating workbenches, medical devices, measuring instruments, IC manufacturing and loading fields, and has been well applied.
Parameter :
| Model | Overall dimensions | Shoulder size | RATED LOAD | weight | ||||||
| d | D | dp | height B B1 | chamfer | ds | Dh | C | C0 | Kg | |
| (mm) | (mm) | (mm) | (mm) | (min) | KN | KN | ||||
| HRU42 | 20 | 70 | 41.5 | 12 | 0.6 | 37 | 47 | 7.35 | 8.35 | 0.29 |
| HRU66 | 35 | 95 | 66 | 15 | 0.6 | 59 | 74 | 17.5 | 22.3 | 0.62 |
| HRU85 | 55 | 120 | 85 | 15 | 0.6 | 79 | 93 | 20.3 | 29.5 | 1 |
| HRU 124(G) | 80 | 165 | 124 | 22 | 1 | 114 | 134 | 33.1 | 50.9 | 2.6 |
| HRU 124X | ||||||||||
| HRU148(G) | 90 | 210 | 147.5 | 25 | 1.5 | 133 | 162 | 49.1 | 76.8 | 4.9 |
| HRU 148X | ||||||||||
| HRU 178(G) | 115 | 240 | 178 | 28 | 1.5 | 161 | 195 | 80.3 | 135 | 6.8 |
| HRU 178X | ||||||||||
| HRU 228(G) | 160 | 295 | 227.5 | 35 | 2 | 208 | 246 | 104 | 172 | 11.4 |
| HRU 228X | ||||||||||
| HRU 297(G) | 210 | 380 | 297.3 | 40 | 2.5 | 272 | 320 | 156 | 281 | 21.3 |
| HRU 297X | ||||||||||
| HRU 445(G) | 350 | 540 | 445.4 | 45 | 2.5 | 417 | 473 | 222 | 473 | 35.4 |
| HRU 445X | ||||||||||
FAQ
Q1:Can we get the sample for reference?
A1:We are glad to send samples for your inspection if we have the same or similar samples in hand. To new customer, you may need to pay the sample(depends on product's value) and the express fees.
And if you want us to make the same sample as you required , which you may need to send us 3D drawing or the original sample and afford the sampling charge, when you place a order of bulk production , we will refund this charge to you.
Q2:How long will be my goods ready for shipment ?
A2:Different specification products with different quantity ordered, the time of delivery is different, .As usual, it will take 3~4 weeks .
Q3:Do it need to apply Permit to export Military, police and tactical items from China?
A3:Yes. There is strict law and regulation by Chinese government for the exporting of Military , police and tactical items. Only China Xinxing could issue the permit for the legal shipment.
Q4: What is your terms of payment?
A4:T/T
