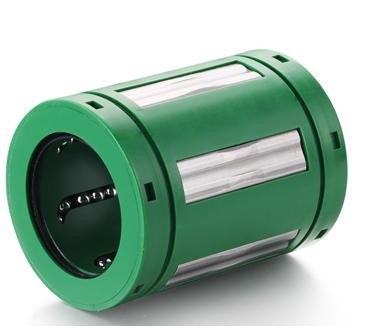

Diameter 8mm Linear Motion Bearing Multiscene Stable Operation
| Place of Origin | China |
|---|---|
| Brand Name | TIMKEN/ NSK/NTN/FAG/DJTECH/ OEM |
| Certification | ISO9001-2015/SGS/BV/CE/IAF |
| Model Number | D0520 |
| Minimum Order Quantity | 50PCS |
| Price | Negotiable |
| Delivery Time | about 3~4 weeks |
| Payment Terms | T/T |
| Supply Ability | 250000pcs/per day |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Number Of Steel Ball Rows | Higher Load Capacity | Function | Adaptive Function |
|---|---|---|---|
| Operation | Stable | Gap | Adjustable Gap |
| Diameter | 8mm | G.W. | 7.2KG |
| W | 1.1mm | D1 | 15.2 |
| High Light | 8mm Linear Motion Bearing,Linear Motion Bearing Multiscene,Stable Linear Bearing Types |
||
Product Description
Linear Motion Bearing,Diameter:8mm,7.2KG,Dynamic Load :423CN,Static Load CoN:534CN
Product description :
Metal linear motion bearing is a linear motion system with low production cost which is used in conjunction with a unlimitless route with a cylindrical bearing. It is widely applied to sliding parts of precision machine , textile machinery Food packaging machinery, printing machinery and so on .Linear motion is used for conjunction with linear route and cylindrical bearing . Because the bearing ball and bearing sleeve point contact , The ball rolls with minimal friction .Therefore, linear bearings have small friction, and relatively stable, The stable linear motion with high sensitivity and precision can be obtained without changing the bearing speed. Linear bearing consumption also has its limitations, The most important is the bearing has poor impact load capacity and carrying capacity is also poor.Secondly, the vibration and noise of linear bearing are bigger when it moves at high speed.
Parameter :
| Standard type: SLME8UU | |
| Nominal shaft diameter |
8 |
| Number of steel ball rows | 4 |
| Weight (g) | 7.2 |
| dr (mm) | 8 |
| dr tolerance (μm) | +8/0 |
| D (mm) | 16 |
| L (mm) | 25 |
| L tolerance (μm) | ±200 |
| B (mm) | 16.5 |
| B tolerance (μm) | 0/-200 |
| W (mm) | 1.1 |
| D1 (mm) | 15.2 |
| dynamic load CN | 423 |
| Static load CoN | 534 |
FAQ:
Q1:How long will be my goods ready for shipment ?
A1:Different specification products with different quantity ordered, the time of delivery is different, .As usual, it will take 3~4 weeks .
Q2: What is your terms of payment?
A2:T/T
Q3: How to solve the quality problems after sales?
A3: (1) Take photos of the problems and send to us.
(2) Take videos of the problems and send to us.
(3) Send back the defective products to us if neccessory.
After we comfirm the problems, will give you the answer within 7 days.
