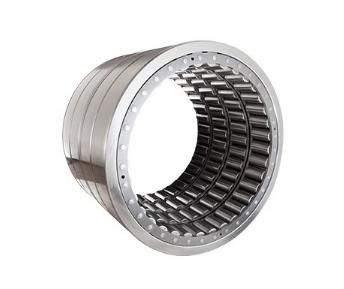

Stable 4 Row Cylindrical Roller Bearing OD140-360MM With Grease Lubrication

Place of Origin China
Brand Name DJTech or OEM, TNT, SKF, Koyo ,FAG , NSK,INA,IKO,TIMKEN
Certification ISO9001-2015/SGS/BV/CE/IAF
Model Number NU series ,NNU series ,NN series
Minimum Order Quantity 10
Price Negotiable
Delivery Time about 3~4wks
Payment Terms T/T in advance
Supply Ability 7.5KKPCS/Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Service OEM, Customized Number Of Row Single Row, Double Row, Four Row
Lubrication Oil Lubrication, Grease Lubrication Material GCr15SiMn, GCr15, Chrome Steel, Carbon Steel
Outer Diameter 140-360mm Precision Level P0, P6, P5, P4
Model# FC Series Weight 4.3-100kg
High Light

Stable Cylindrical Roller Bearing

,

Cylindrical Roller Bearing Grease Lubrication

,

360MM 4 Row Cylindrical Roller Bearings

Leave a Message
Product Description

Four Row FAG Spherical Roller Bearing With Grease Lubrication , FC Series , OD140~360MM



Product Description:



Four-row cylindrical roller bearings are used as roller bearings on metallurgical equipment ,Because of its compact structure, good rigidity

and high load-carrying capacity, it is widely used in rolling mill bearings .The inner ring can not bear axial load because it has no rib.

Therefore, it needs to be matched with thrust bearing to bear axial load.

Four-row cylindrical roller bearings are used in rolling mills with high requirements of speed and accuracy.



Cylindrical Roller Bearings are a type of rolling-element bearing that uses cylinders as the rolling elements. These bearings are capable of taking radial and axial load in both directions. The inner and outer rings of this type of bearing are both machined to tight tolerances and have a high degree of stiffness and running accuracy. FAG Spherical Roller Bearings are a type of Four Row cylindrical roller bearings, which are split into single-row, double-row, and four-row designs. The clearance for these bearings is available in C0, C2, C3, C4, and C5. The outer diameter of the Cylindrical Roller Bearing ranges from 35mm to 420mm, while the width ranges from 11mm to 80mm. The weight of the bearing is available from 0.2kg to 20kg. The material used for constructing Cylindrical Roller Bearing includes GCr15SiMn, GCr15, Chrome Steel, and Carbon Steel.



Features:



  • Product Name: NSK Cylindrical Roller Bearing, INA Cylindrical Roller Thrust Bearings, IKO Cylindrical Roller Bearing, Timken Cylindrical Roller Bearing
  • Internal Diameter: 90-250mm
  • Material: GCr15SiMn, GCr15, Chrome Steel, Carbon Steel
  • Precision Level: P0, P6, P5, P4
  • Vibration Level: V1, V2, V3, V4
  • Clearance: C0, C2, C3, C4, C5


Technical Parameters:



Bearing size Rated load Model# Installation dimension Weight
mm kN
d D B Fw rmin r1min Cr Cor Current model Original model damin Damin Damax ramax rbmax kg
90 140 70 105 1.5 1.1 222 454 FC182870 672718 98 126 132 1 1 4.4
  140 74 105 1.5 1.1 222 454 FC182874 - 98 126 132 1 1 4.5
100 140 70 111 1.5 1.1 194 416 FC202870 672820 108 129 135 1 1 3.5
  140 90 111 1.5 1.1 290 616 FC202890 - 108 129 135 1 1 4.3
  140 104 111 1.5 1.1 335 730 FC2028104 672720 108 129 135 1 1 5.1
  145 70 113 1.5 1.1 219 457 FC202970 672720K 108 133 137 1 1 4.1
  150 106 113 1.5 1.1 347 736 FC2030106 -           6.8
110 150 80 122 1.5 1.1 241 602 FC223080 -           4.4
  170 90 127 2 2 358 754 FC223490 - 121 155 159 2 2 7.9
  170 120 127 2 2 605 1060 FC2234120 672722 121 155 159 2 2 10.6
  210 170 137 2 2 923 1610 FC2242170 -           27.3
120 180 92 137 2 2 375 820 FC243692 - 128 165 169 2 1 8.7
  180 105 136 2 2 459 894 FC2436105 672724 128 165 169 2 1 9.8
  180 120 136 2 2 477 1061 FC2436120 - 128 165 169 2 1 11.2
130 200 104 149 2 2 478 1006 FC2640104 - 141 183 189 2 2 12.5
  200 125 149 2 2 738 1220 FC2640125 672726 141 183 189 2 2 15
140 210 100 158 2 2 503 1096 FC2842100 - 151 192 199 1.5 1.5 12.8
  210 106 158 2 2 503 1096 FC2842106 - 151 192 199 1.5 1.5 13.6
  210 125 158 2 2 718 1365 FC2842125 672728 151 192 199 1.5 1.5 15.8
  210 155 158 2 2 756 1774 FC2842155 - 151 192 199 1.5 1.5 19.6
145 210 155 166 2 2 720 1560 FC2942155 - 154 196 201 1 1 20
  225 156 169 2 2 815 1660 FC2945156 672729 156 205 214 2 2 24.4
150 225 120 169 2 2 788 1586 FC3045120 - 161 207 216 1.5 1.5 17.5
  225 150 169 2 2 865 1770 FC3045150 - 161 207 216 1.5 1.5 21
  230 156 174 2 2 840 1760 FC3046156 672730 161 210 219 2 2 24.6
160 230 130 180 2 2 781 1384 FC3246130 - 171 214 219 1.5 1.5 22.7
  230 168 179 3 2 818 2218 FC3246168 - 171 214 219 2 2 24.2
  240 124 183 2.1 2.1 690 1543 FC3248124 672732K 172 219 228 2 2 20.6
  240 168 183 2.1 2.1 947 2310 FC3248168 672732 172 219 228 2 2 28
  260 168 183 2.5 2.1 953 2326 FC3252168 -           38.2
170 230 130 189 2 2 680 1720 FC3446130 - 181 215 219 2 2 16.3
  230 152 186 2 2 765 1790 FC3446152 - 181 215 219 2 2 17.4
  230 180 186 2 2 707 2041 FC3446180 - 181 215 219 2 2 22.7
  240 130 190 2 2 830 1830 FC3448130 - 181 222 229 2 2 19
  250 170 192 2.1 2.1 1000 2400 FC3450170 672734H 182 232 238 2 2 29.9
  260 120 195 2.1 2.1 863 1730 FC3452120 672734Y 182 237 248 2 2 24.2
  260 150 195 2.1 2.1 860 1948 FC3452150 - 182 237 248 2 2 30.2
  260 170 196 2.1 2.1 1080 2460 FC3452170 - 182 237 248 2 2 34.9
  260 225 196 2.1 2.1 1270 3350 FC3452225 - 182 237 248 2 2 43.5
180 250 120 200 2.1 2.1 609 1583 FC3650120 - 191 234 239 2 2 19
  250 156 200 2 2 710 1527 FC3650156 672836 191 234 239 2 2 24.7
  260 120 202 2.5 2.1 693 860 FC3652120 - 192 242 248 2 2 20.2
180 260 124 202 2.1 2.1 718 1668 FC3652124 672736K 192 242 248 2 2 22.6
  260 154 202 2.5 2.1 983 2200 FC3652154 - 192 242 248 2 2 28.2
  260 160 202 2.1 2.1 893 2206 FC3652160 - 192 242 248 2 2 29.2
  260 168 202 2.1 2.1 1060 2440 FC3652168 672736 192 242 248 2 2 30.7
  260 180 202 2.1 2.1 1150 2560 FC3652180 - 192 242 248 2 2 32.9
  280 180 207 2.1 2.1 1220 2580 FC3656180 -           43.4
190 260 168 212 2.1 2.1 1020 2600 FC3852168 - 202 244 248 2 2 27.9
  265 124 213 2.1 2.1 816 1926 FC3853124 672838K           22.1
  270 124 212 2.1 2.1 816 1925 FC3854124 - 201 252 259 2 2 24.2
  270 168 212 2.1 2.1 1062 2798 FC3854168 672738K 201 252 259 2 2 32
  270 200 212 2.1 2.1 1359 3350 FC3854200 672738 201 252 259 2 2 38.2
  280 200 214 2.1 2.1 1540 3350 FC3856200 -           41.5
200 270 120 222 2.1 2.1 615 1626 FC4054120 - 212 254 258 2 2 20.8
  270 170 222 2.1 2.1 985 2670 FC4054170 - 212 254 258 2 2 29.5
  280 170 222 2.1 2.1 1130 2730 FC4056170 - 212 262 268 2 2 33
  280 200 222 2.1 2.1 1360 3460 FC4056200 - 211 262 269 2 2 39.9
200 290 130 226 2.5 2.1 840 1975 FC4058130 - 212 268 278 2 2 29.9
  290 192 226 2.1 2.1 1386 3250 FC4058192 672740 212 268 278 2 2 44.9
210 290 192 236 2.1 2.1 1300 3400 FC4258192 - 223 274 277 2 2 40.6
  300 170 234 2.1 2.1 1031 2814 FC4260170 - 223 278 287 2 2 41.4
  300 210 234 2.1 2.1 1300 3040 FC4260210 672742 223 278 287 2 2 50.3
220 300 192 242 2.1 2.1 1085 3310 FC4460192 -           41.5
  310 157 246 2.1 2.1 1132 2627 FC4462157 - 233 286 298 2 2 39.7
  310 190 246 2.1 2.1 1283 3503 FC4462190 - 233 286 298 2 2 47.2
  310 192 246 2.1 2.1 1250 3070 FC4462192 672744 233 286 298 2 2 48.6
  320 210 248 2.1 2.1 1321 3534 FC4464210 - 233 296 307 2 2 59.8
  340 192 246 2.5 2.1 1599 3444 FC4468192 -           65.6
230 330 170 260 2.1 2.1 1142 2974 FC4666170 - 243 306 317 2 2 50.2
  330 206 260 2.1 2.1 1470 3760 FC4666206 672746 243 306 317 2 2 60.8
  365 250 266 3 3 2400 4900 FC4673250 - 244 334 351 2.5 2.5 100
240 330 220 264 2.1 2.1 1373 3789 FC4866220 672748 253 308 317 2 2 58.4
  340 192 268 2.1 2.1 1219 3161 FC4868192 - 254 318 326 2.5 2.5 58
  360 220 272 2.1 2.1 1600 4065 FC4872220 - 254 330 346 2.5 2.5 83
250 340 170 274 3 3 1141 3281 FC5068170 -           47.9
  350 220 278 3 3 1350 3804 FC5070220 672750 264 326 336 2.5 2.5 70.2
  360 160 282 3 3 1077 2781 FC5072160 -           57
  360 220 282 3 3 1486 4210 FC5072220 -           78.5



Applications:



Cylindrical Roller Bearings are widely used in many industries, from automotive to heavy industrial equipment. TIMKEN cylindrical roller bearings are designed to meet the most challenging requirements, including high radial and axial loads, high speeds and extreme temperatures. TNT combined needle roller bearings are ideal for applications requiring high speed and accurate guidance. Four row cylindrical roller bearings are designed to handle the most severe radial and axial loads. DJTech multi row cylindrical roller bearings provide improved rigidity, accuracy and fatigue life. SKF single row cylindrical roller bearings have high radial load capacity and are suitable for high-speed applications. Koyo double row cylindrical roller bearings are designed to withstand heavy radial loads. FAG radial load cylindrical roller bearings are designed for optimal performance and long service life. NSK high precision cylindrical roller bearings are designed for high speed and high precision applications. INA low noise cylindrical roller bearings are designed for low noise and vibration applications. IKO high speed cylindrical roller bearings are designed to provide superior performance in high speed applications. These bearings are available in a variety of materials such as GCr15SiMn, GCr15, Chrome Steel, Carbon Steel, with cages such as Steel Cage, Brass Cage, Nylon Cage.

The cylindrical roller bearings are of superior quality and are available in various models such as NU series, NNU series, NN series. They come with a minimum order quantity of 10 and can be customized to suit individual requirements. The price is negotiable and delivery time is about 3~4 weeks. The payment terms are T/T in advance and the supply ability is 7.5KKPCS/month. The cylindrical roller bearings come with ISO9001-2015/SGS/BV/CE/IAF certification and a variety of widths from 11-80mm.



Customization:

Cylindrical Roller Bearing
  • Brand Name: DJTech or OEM, TNT, SKF, Koyo ,FAG , NSK,INA,IKO,TIMKEN
  • Model Number: NU series ,NNU series ,NN series
  • Place of Origin: China
  • Certification: ISO9001-2015/SGS/BV/CE/IAF
  • Minimum Order Quantity: 10
  • Price: Negotiable
  • Delivery Time: about 3~4wks
  • Payment Terms: T/T in advance
  • Supply Ability: 7.5KKPCS/Month
  • Cage: Steel Cage, Brass Cage, Nylon Cage
  • Seals Type: Open, Z, ZZ, RS, 2RS
  • Outer Diameter: 140-360mm
  • Internal Diameter: 90-250mm
  • Precision Level: P0, P6, P5, P4
  • Four Row cylindrical roller bearings: Yes
  • TIMKEN Cylindrical Roller Bearing: Yes
  • Four Row cylindrical roller bearings: Yes


FAQ:



  1. Q: What is the brand name of Cylindrical Roller Bearing?
    A: The brand name of Cylindrical Roller Bearing is DJTech or OEM, TNT, SKF, Koyo ,FAG , NSK,INA,IKO,TIMKEN.
  2. Q: What is the model number of Cylindrical Roller Bearing?
    A: The model number of Cylindrical Roller Bearing is NU series ,NNU series ,NN series.
  3. Q: Where is Cylindrical Roller Bearing made?
    A: Cylindrical Roller Bearing is made in China.
  4. Q: What certifications does Cylindrical Roller Bearing have?
    A: Cylindrical Roller Bearing has ISO9001-2015/SGS/BV/CE/IAF certifications.
  5. Q: What is the minimum order quantity of Cylindrical Roller Bearing?
    A: The minimum order quantity of Cylindrical Roller Bearing is 10.
