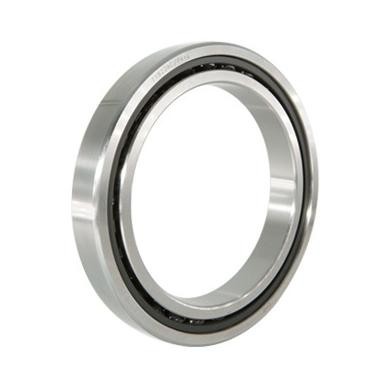

Industrial Angular Contact Ball Bearing Multipurpose Steel Material

Place of Origin China
Brand Name DJTech or OEM, TNT, SKF, Koyo ,FAG , NSK,INA,IKO,TIMKEN
Certification ISO9001-2015/SGS/BV/CE/IAF
Model Number QJXXX ,QJFXXX , 618XX Series, 619XX Series, 718XX Series, 719XX Series
Minimum Order Quantity 50
Price Negotiable
Packaging Details Dependable package
Delivery Time 3~4wks
Payment Terms T/T
Supply Ability 7.5kkpcs/per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Material Steel Seals Open
Rated Dynamic Load(Cr) 19.6~637kN Type 618/619 Bearing, 718 719 Series , Grinder Spindle Bearing/lathe Spindle Bearing , Walking Reducer Of Angular Contact Bearing
Cage Steel Or Brass Or Nylon External Diameter 130~520MM
Inner Diameter 75~340MM Max.limited Speed For Grease Lubrication 1300~10000 R/min For Grease Lubrication
High Light

Industrial Angular Contact Ball Bearing

,

Angular Contact Ball Bearing Multipurpose

,

Steel Industrial Ball Bearing

Leave a Message
Product Description

718 719 Series Angular-Contact Ball Bearing For Various Industrial Requirements



Product Description:



CHG light series accuracy angular contact ball bearing has 718 series,719 series angular contact ball bearing. It has three series , high speed angular contact bearing(standard series),Ultra high speed angular contact ceramic ball bearing, High speed sealed angular contact ball bearings . 718 series bearing and two dimension series of accuracy angular contact ball bearing of 718 series bearing, Angular contact ball bearings of the same inner diameter, the outer diameter and width increase in turn .High speed sealed angular contact ball bearings . CHG precision hybrid ceramic ball bearing (code HQU), can significantly improve the spindle speed, rigidity, reliability and production efficiency, reduce friction heating of the spindle , extend the life of the host.



Angular contact ball bearing is a type of bearing that has an angular contact between the balls and the races of the bearing. This allows for the bearing to handle both radial and axial loads. It is designed with open seals, and can be lubricated with grease or oil. The external diameter of the bearing is from 125 to 380mm, and the rated static load can range from 21.2 to 1020 KN, with the maximum speed for grease lubrication ranging from 1300 to 10000 R/min. Angular contact ball bearing is an ideal choice for applications that require both radial and axial loads, with the ability to withstand heavy loads and high speeds.



Features:



  • Product Name: Angular Contact Ball Bearing
  • Inner Diameter: 75~340mm
  • Lubrication: Grease, Oil
  • Max.limited speed for Grease lubrication: 1300~10000 R/min For Grease Lubrication
  • Model: QJXXXX Series, QJFXXXX Series , 618xx Series, 619xx Series, 718xx Series, 719xx Series , 320xA Series
  • Type: Double Row Angular Contact Ball Bearing
  • Grinder spindle bearing/lathe spindle bearing
  • ball bearing screw
  • Walking reducer of angular contact bearing
  • Special angular contact bearing for pump motor
  • RV Reducer angular contact bearing
  • 618/ 619 , 718/719 series angular contact bearing


Technical Parameters:



Dimension Rated load Model Weight Installation Dimension Max. limited Speed
mm kN kg mm r/min
d D B Tmin hmin Cr Cor da Da Ta ra1
100 128 13 1 0.3 21.2 27.5 71820 0.2 104.6 120.4 1 1 8500 13000
140 20 1.1 0.6 60.6 65.5 71920 0.8 106 134 1 1 8500 14000
110 140 16 1 0.3 31.9 40.5 71822 0.51 114.6 135.4 1 1 8000 13000
150 20 1.1 0.6 62.4 72 71922 0.86 116 144 1 1 8000 13000
120 150 16 1 0.3 33.2 45 71824 0.55 124.8 145.4 1 1 7500 12000
150 20 1.1 0.6 24.7 25.5 71924 1.15 116 144 1 1 10000 15000
130 165 18 1.1 0.6 39 53 71826 0.7 136 159   1 7000 11000
180 24 1.5 0.6 92.3 108 71926 1.55 137 173 1.5 1.5 7000 11000
140 175 18 1.1 0.6 44.9 62 71828 0.8 146 169 1 1 6300 10000
190 24 1.5 0.6 95.6 116 71928 1.65 147 183 1.5 1.5 6700 10000
150 190 20 1.1 0.6 53.5 74.5 71830 1.32 156 184 1 1 6300 9500
210 28 2 1 90 120 71930 3 160 200 2 1 6300 9500
160 200 20 1.1 0.6 54 78 71832 1.25 166 194 1 1 5600 8500
220 28 2 1 109 129 71932 3 170 210 2 1 6000 9000
170 215 22 1.1 0.6 80 110 71834 2 175 210 1 1 5600 8500
230 28 2 1 110 140 71934 3.3 179 221 2 2 5600 8500
190 260 33 2 1 139 177 71938 4.45 199 255 2 2 5000 7500



Applications:



Angular Contact Ball Bearing is a widely used bearing product, with Brand Name DJTech or OEM, TNT, SKF, Koyo ,FAG , NSK,INA,IKO,TIMKEN. It has various models, including QJXXX series,QJFXXX series, 618XX Series, 619XX Series, 718XX Series, 719XX Series,320xA series  and the place of origin is China. It has a type of Angular Contact Ball Bearing and lubrication of Grease and Oil. The outer diameter of Angular Contact Ball Bearing is 130~520mm and max. limited speed for oil lubrication is 1600 ~14000 R/min For Oil Lubrication. It is suitable for various industrial applications and scenes.



Customization:

Customized Service for Angular Contact Ball Bearing

Here at DJTech, we provide customized services for our customers' Angular Contact Ball Bearing needs. Our products include:

  • Brand Name: DJTech, TNT, SKF, Koyo, FAG, NSK,INA,IKO,TIMKEN
  • Model Number: QJXXX series, 618XX Series, 619XX Series, 718XX Series, 719XX Series
  • Place of Origin: China
  • Inner Diameter: 75~340mm
  • Type: Angularly-Contacted Roller-Bearing, Angularly-Contacted Ball-Bearing, Angular-Contacted Ball-Bearing
  • Width: 25~82mm
  • Clearance: C0, C2, C3, C4, C5
  • Separable: Separable

We are committed to providing our customers with the best quality Angular Contact Ball Bearing and services, so please feel free to contact us with any questions or inquiries you may have.



Support and Services:



We provide technical support and service for the Angular Contact Ball Bearing product. Our professional team of engineers and technicians are available to answer any questions you have regarding installation, maintenance and operation of the product. Our customer service team is available to assist with any inquiries you may have and provide guidance on how to best use the product. We also provide spare parts and accessories for the Angular Contact Ball Bearing product.



Packing and Shipping:



Angular contact ball bearings are typically packaged and shipped in individual boxes or cardboard tubes. The boxes or tubes should be large enough to accommodate the bearing size, and should also be lined with a cushioning material to protect the bearing from any damage during shipping. Additionally, the shipping label should clearly indicate the product name and destination address.



FAQ:



Q1: What is an Angular Contact Ball Bearing?

A1: An Angular Contact Ball Bearing is a type of rolling-element bearing that uses angled inner and outer rings to accommodate axial and radial loads. This type of bearing is able to accommodate heavy loads and run at high speeds, making it ideal for a variety of industrial applications.

Q2: What are the brands of Angular Contact Ball Bearing available?

A2: The brands of Angular Contact Ball Bearing available are DJTech, OEM, TNT, SKF, Koyo, FAG, NSK, INA, IKO, and TIMKEN.

Q3: What are the model numbers of Angular Contact Ball Bearing?

A3: The model numbers of Angular Contact Ball Bearing are QJXXX series, 618XX Series, 619XX Series, 718XX Series, and 719XX Series.

Q4: Where are the Angular Contact Ball Bearings manufactured?

A4: The Angular Contact Ball Bearings are manufactured in China.

Q5: What are the advantages of using an Angular Contact Ball Bearing?

A5: The advantages of using an Angular Contact Ball Bearing are its ability to handle high loads and its ability to run at high speeds. It is also often used in high precision applications due to its tight tolerances and low friction.
