Industrial Durable Thin Section Bearings , 2.65KG 4 Point Contact Ball Bearing

Place of Origin China
Brand Name DJTech or OEM, TNT, SKF, Koyo ,FAG , NSK,INA,IKO,TIMKEN
Certification ISO9001-2015/SGS/BV/CE/IAF
Model Number QJXXXX Series, QJFXXXX Series
Minimum Order Quantity 50
Price Negotiable
Packaging Details Independent packing
Delivery Time about 3~4wks
Payment Terms T/T in advance
Supply Ability 7.5KKPCS/Month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Rated Dynamic Load(Cr) 148 KN Seals Type Open
Inner Diameter 120mm Clearance C0,C2,C3,C4
Rated Static Load (Cor) 196 KN Precision ABEC 3, ABEC 5, ABEC 7
Type Four Point Contact Ball Bearing Weight 2.65KG
High Light

Industrial Thin Section Bearings

,

Durable Thin Section Bearings

,

2.65KG 4 Point Contact Ball Bearing

Leave a Message
Product Description

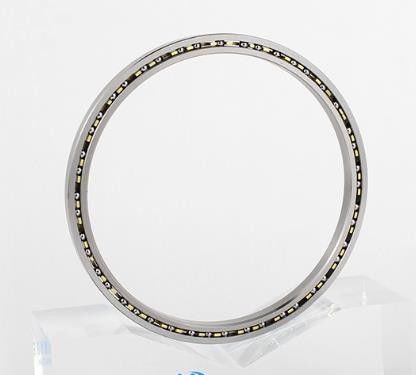

Clearance C4 Precision ABEC 5 Four Point Contact Ball Bearing , QJ1024



Product Description:



Four Point Contact Ball Bearing is a special type of bearing that is designed for carrying radial and axial loads in both directions. It is composed of four point contact elements, which are designed to bear load in both directions. This type of bearing offers high load capacity, low friction, high accuracy and long life. It is suitable for use in machines with high speed and low vibration. The weight of this bearing ranges from 1.45kg to 48.5kg, and its outer diameter ranges from 130mm to 520mm. The width of this bearing varies from 25mm to 82mm, and its vibration level is rated V1. Four Point Contact Ball Bearing is an ideal choice for applications requiring high speed, low vibration and high accuracy.



Features:



  • Product Name: Four Point Contact Ball Bearing
  • Precision: ABEC 3, ABEC 5, ABEC 7
  • Outer Diameter: 180mm
  • Inner Diameter : 120mm
  • Separable: Yes
  • Material: Steel
  • Four Point Contact Bearings
  • Four Point Ball Bearings
  • Four Point Contact Ball Bearing


Technical Parameters:



Dimension Rated load Model Weight Installation dimension Max. limited speed
mm kN New model Original model kg mm r/min
d D B rmin Cr Cor damin Damax ramax Grease Oil
120 180 28 2 148 196 QJ1024   2.65 130 170 2 2600 3600
  215 40 2.1 286 340 QJ224   6.95 132 203 2 2200 3200
  260 55 3 390 490 QJ324   16 148 292 3 1900 2800
130 200 33 3 182 240 QJ1026   4.05 140 190 2 2200 3200
  230 40 3 296 365 QJ226   7.75 144 216 2.5 1900 2800
  280 58 4 423 560 QJ326   19.5 148 262 3 1800 2600
140 210 22 1.1 121 163 605647A   2.6 147 203 1 2000 3000
  210 33 2 190 265 QJ1028   4.3 150 200 2 2000 3000
  250 42 3 325 440 QJ228   9.85 154 236 2 1800 2600
  300 62 4 468 640 QJ328   24 158 282 3 1700 2400
150 225 35 2.1 225 275 QJ1030 176130 5.1 162 213 2 1900 2800
  270 45 3 302 372 QJ230 176230 12.5 164 256 2.5 1700 2400
  320 65 4 494 710 QJ330 176330 29 168 302 2 1600 2200
160 240 38 2.1 260 318 QJ1032 176132 6.3 172 228 2 1800 2600
  290 48 3 352 455 QJ232 176232 14.6 174 276 2.5 1600 2200
  340 68 4 585 865 QJ332 176332 31 178 388 3 1500 2000
170 260 42 2.1 226 350 QJ1034 176134 8.5 182 248 2 1700 2400
  265 42 2.1 226 350 QJF1034X1 176734X1 9 182 248 2 1300 1600
  310 52 4 358 480 QJ234 176234 19.5 188 292 3 1600 2200
  360 72 4 618 965 QJ334 176334 41.5 188 342 3 1400 1900
180 280 46 2.1 335 408 QJ1036 176136 11 192 268 2 1600 2200
  320 52 4 392 545 QJ236 176236 20.5 198 3020 3 1500 2000
  380 75   637 1020 QJ336   47.5 198 362 3 1300 1800





Applications:



Four Point Contact Ball Bearing is a kind of bearing that can bear radial and axial loading simultaneously. It has four contact points between the inner and outer ring, which can support high radial and axial loads. It has a low friction coefficient and low vibration. It is suitable for heavy machine tools, high-speed machines, automobiles, power plants, etc.

Brand Name: DJTech or OEM, TNT, SKF, Koyo ,FAG , NSK,INA,IKO,TIMKEN

Model Number: QJXXXX Series, QJFXXXX Series

Place of Origin: China

Certification: ISO9001-2015/SGS/BV/CE/IAF

Minimum Order Quantity: 50

Price: Negotiable

Packaging Details: Independent packing

Delivery Time: about 3~4wks

Payment Terms: T/T in advance

Supply Ability: 7.5KKPCS/Month

Material: Steel

Bore Type: Cylindrical Bore

Weight: 2.65kg

Cage: Steel

Vibration Level: V1

Four Point Contact Ball Bearing can be widely used in various industrial applications, such as wind turbines, automotive, medical, food processing, and other industries. It is also applicable in the production of heavy equipment, high-speed machines, automobiles, power plants, and other machinery.



Customization:



Four Point Ball Bearings, Four Point Roller Bearings, Four Point Contact Ball Bearing is a reliable product with high performance and durability. Brand Name: DJTech or OEM, TNT, SKF, Koyo ,FAG , NSK,INA,IKO,TIMKEN, Model Number: QJXXXX Series, QJFXXXX Series, Place of Origin: China, Certification: ISO9001-2015/SGS/BV/CE/IAF, Minimum Order Quantity: 50, Price: Negotiable, Packaging Details: Independent packing, Delivery Time: about 3~4wks, Payment Terms: T/T in advance, Supply Ability: 7.5KKPCS/Month, Inner Diameter: 75~340mm, Cage: Steel, Weight: 1.45~48.5kg, Bore Type: Cylindrical Bore, Separable: Yes.



Support and Services:



  • 24/7 online technical support
  • Professional installation and commissioning
  • Onsite maintenance and repair
  • Fault diagnostics and troubleshooting
  • Spare parts supply and replacement
  • Regular inspection and maintenance
  • Software upgrade and update
  • Training and consulting


Packing and Shipping:



  • The Four Point Contact Ball Bearing is securely packaged in a cardboard box and then sealed with a plastic bag for extra protection.
  • The box is then placed in a shipping container and shipped to its destination.
  • The shipping container is checked for any damages before shipping.
  • The Four Point Contact Ball Bearing is shipped via a reliable shipping service with tracking information provided to the customer.


FAQ:



  • Q:What brand of Four Point Contact Ball Bearing do you supply?
    A:We supply DJTech or OEM, TNT, SKF, Koyo ,FAG , NSK,INA,IKO,TIMKEN brands of Four Point Contact Ball Bearing.
  • Q:What model of Four Point Contact Ball Bearing do you supply?
    A:We supply QJXXXX Series, QJFXXXX Series of Four Point Contact Ball Bearing.
  • Q:Where is the Four Point Contact Ball Bearing made?
    A:Our Four Point Contact Ball Bearing is made in China.
  • Q:What certifications do you have for the Four Point Contact Ball Bearing?
    A:Our Four Point Contact Ball Bearing has ISO9001-2015/SGS/BV/CE/IAF certifications.
  • Q:What is the minimum order quantity for the Four Point Contact Ball Bearing?
    A:The minimum order quantity for the Four Point Contact Ball Bearing is 50.
