Industrial Durable Bearing Double Roller , Chrome Steel Spherical Roller Bearing
Place of Origin | China |
---|---|
Brand Name | DJTech or OEM, TNT, SKF, Koyo ,FAG , NSK,INA,IKO,TIMKEN |
Certification | ISO9001-2015/SGS/BV/CE/IAF |
Model Number | NU series ,NNU series ,NN series |
Minimum Order Quantity | 10 |
Price | Negotiable |
Packaging Details | Independent packing |
Delivery Time | about 3~4wks |
Payment Terms | T/T in advance |
Supply Ability | 7.5KKPCS/Month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xSeals Type | Open, Z, ZZ, RS, 2RS | Width | 11-80mm |
---|---|---|---|
Cage | Steel Cage, Brass Cage, Nylon Cage | Lubrication | Oil Lubrication, Grease Lubrication |
Service | OEM, Customized | Material | GCr15SiMn, GCr15, Chrome Steel, Carbon Steel |
Bore Diameter | 15-200mm | Outer Diameter | 35-420mm |
High Light | Industrial Bearing Double Roller,Durable Bearing Double Roller,Chrome Steel Spherical Roller Bearing |

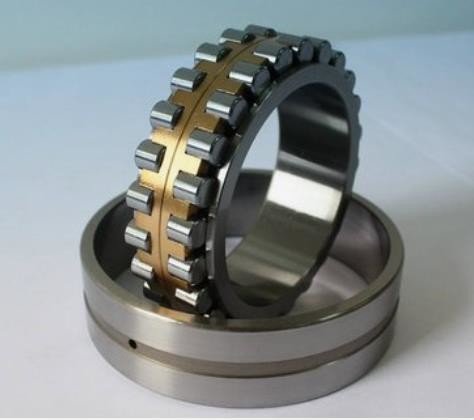

Bore Diameter From 15-200mm Double Row Cylindrical Roller Bearings - C3 Clearance
Product Description:
Double Row cylindrical roller bearings have the cylindrical and conical hole (Postcode K) two kinds of structures .
There are mainly two kinds of types : NNU design and NN design. NN design's inner ring has double sides and outer ring without side .NNU design's inner rign has no sides and outer rign has two sides.The tapered hole structure can adjust the radial clearance during installation.Double Row cylindrical roller bearings allow a certain axial displacement between the shaft and the housing , can be used as a non-positioning bearing.This kind of bearings has advantages such as compact structure ,great rigidity,large bearing capacity, small deformation after loading and other advantages.it is suitable for machine tool spindle support .
Cylindrical Roller Bearing is a kind of rolling-element bearing that uses cylinders to maintain the separation between the moving parts of the bearing. It can be used in applications where high radial loads are present. The cage of the Cylindrical Roller Bearing is made of steel, brass, nylon, etc. and the material of the bearing includes GCr15SiMn, GCr15, Chrome Steel, Carbon Steel. The width of the bearing ranges from 11mm to 80mm. Seals Type of the bearing includes Open, Z, ZZ, RS, 2RS. FAG Spherical Roller Bearing, SKF Conveyor Roller Bearing Housing, and INA Cylindrical Roller Thrust Bearings are all available. OEM and Customized service are also available.
Features:
- Product Name: Cylindrical Roller Bearing
- Lubrication: Oil Lubrication, Grease Lubrication
- Clearance: C2, C3, C4, C5
- Bore Diameter: 15-200mm
- Number of Row: Single Row, Double Row, Four Row
- Precision Level: P0, P6, P5, P4
- Brands: FAG Spherical Roller Bearing, NSK Cylindrical Roller Bearing, TIMKEN Cylindrical Roller Bearing
Technical Parameters:
Dimension | Rated load | Model | Structure size | Installation size | N.W. | |||||||||||
mm | kN | mm | mm | kg | ||||||||||||
d | D | B | rmin | Cr | Cor | New | Old | Fw | Ew | damin | damax | Damin | Damax | dbmin | ramax | |
200 | 280 | 60 | 2.1 | 420 | 815 | NN 3940 | 3282940 | - | 259 | 216 | 221 | 263 | - | - | 2 | 10.6 |
280 | 80 | 2.1 | 484 | 960 | NN 4940K/W20 | 4182940Y | - | 259 | 211 | 222 | 264 | 269 | - | 2 | 14.1 | |
280 | 80 | 2.1 | 570 | 1220 | NN 4940 | 4282940 | - | 259 | 211 | 222 | 264 | 269 | - | 2 | 15.3 | |
280 | 80 | 2.1 | 570 | 1220 | NNU 4940 | 4482940 | 225 | - | 211 | 222 | - | 269 | 228 | 2 | 15.3 | |
310 | 82 | 2.1 | 655 | 1170 | NN 3040 | 3282140 | - | 282 | 211 | - | 285 | 299 | - | 2 | 22.7 | |
310 | 82 | 2.1 | 655 | 1170 | NNU 3040 | 3482140 | 232 | - | 211 | 223 | - | 293 | 237 | 2 | 22.7 | |
310 | 109 | 2.1 | 890 | 1730 | NN 4040 | 4282140 | - | 282 | 216 | 225 | 293 | - | - | 2 | 30.4 | |
220 | 300 | 60 | 2.1 | 440 | 895 | NN 3944 | 3282944 | - | 279 | 236 | 241 | - | 283 | - | 2 | 11.4 |
300 | 80 | 2.1 | 600 | 1330 | NN 4944 | 4282944 | - | 279 | 236 | 242 | - | 283 | - | 2 | 16.6 | |
300 | 80 | 2.1 | 600 | 1330 | NNU 4944 | 4482944 | 245 | - | 231 | 242 | - | 289 | 249 | 2 | 16.6 | |
340 | 90 | 3 | 815 | 1480 | NN 3044 | 3282144 | - | 310 | 233 | - | 313 | 327 | - | 2.5 | 29.6 | |
340 | 90 | 3 | 815 | 1480 | NNU 3044 | 3482144 | 254 | - | 230 | - | 313 | 327 | - | 2.5 | 30 | |
340 | 118 | 3 | 1190 | 2400 | NN 4044 | 4282144 | - | 310 | 233 | - | 313 | 327 | - | 2.5 | 39.8 | |
370 | 120 | 4 | 1050 | 1810 | NN 3144 | 3282744 | - | 331 | 241 | - | - | 346 | - | 3 | 51.9 | |
370 | 120 | 4 | 1050 | 1810 | NNU 3144 | 3482744 | 263 | - | 241 | - | - | 346 | 268 | 3 | 52.3 | |
240 | 300 | 60 | 1.1 | 405 | 1030 | NN 4848 | 4282848 | - | 283 | 248 | 255 | 287 | 290 | - | 1 | 9.77 |
300 | 60 | 1.1 | 358 | 930 | NNU4848 | - | 259 | - | 248 | 255 | - | 290 | 263 | 1 | 9.9 | |
320 | 60 | 2.1 | 460 | 975 | NN 3948 | 3282948 | - | 300 | 251 | 262 | - | 309 | - | 2 | 12.2 |
Applications:
TIMKEN Cylindrical Roller Bearing is designed to withstand the heavy loads and impact loads, which is widely used in mining, construction, agricultural, automotive, and machine tool industries, etc. It has Four Row cylindrical roller bearings, NSK Cylindrical Roller Bearing, Koyo Cylindrical Roller Bearing, FAG Cylindrical Roller Bearing, SKF Cylindrical Roller Bearing, INA Cylindrical Roller Bearing and IKO Cylindrical Roller Bearing. DJTech also provide Cylindrical Roller Bearing with Brand Name: DJTech or OEM, TNT, SKF, Koyo, FAG, NSK, INA, IKO, TIMKEN. The Model Number is NU series, NNU series, NN series and OEM service is available. It’s certified by ISO9001-2000/SGS/BV/CE/IAF and the Minimum Order Quantity is 10. The Price is Negotiable and Packaging Details is Independent packing. The Delivery Time is about 3~4wks and Payment Terms is T/T in advance. The Supply Ability is 7.5KKPCS/Month. It has two classifications, Vibration Level and Precision Level, which is V1, V2, V3, V4, P0, P6, P5, P4 separately. The Bore Diameter is 15-200mm and we can offer OEM, Customized Service. The Lubrication is Oil Lubrication, Grease Lubrication.
Customization:
Cylindrical Roller Bearing is a kind of highly efficient bearing which is mainly composed of outer ring, inner ring, rolling elements, and cage. DJTech offers cylindrical roller bearings in different models, such as NU series, NNU series, NN series and so on. We use OEM, TNT, SKF, Koyo, FAG, NSK, INA, IKO, TIMKEN to guarantee the quality of our products. It is certified by ISO9001-2015/SGS/BV/CE/IAF. The minimum order quantity is 10 pieces and the price is negotiable. The packaging is independent packing and the delivery time is about 3-4 weeks. The payment term is T/T in advance and the supply ability is 7.5KKPCS/Month. We have different vibration levels, such as V1, V2, V3, V4. And the number of row includes single row, double row, four row. We also offer customized service for customers, such as SKF Conveyor Roller Bearing Housing, Four Row cylindrical roller bearings and IKO Cylindrical Roller Bearing. The width of our cylindrical roller bearing is from 11-80mm and the outer diameter is from 35-420mm.
Support and Services:
At ABC Company, we provide technical support and service for our Cylindrical Roller Bearing products. Our team of experts provides a comprehensive suite of services including:
- Installation and Maintenance Assistance
- Troubleshooting and Diagnostics
- Product Optimization and Upgrades
- Performance Evaluation and Testing
- Field Support Services
Our experienced team of engineers is available to provide comprehensive technical support services for all cylindrical roller bearing products. We can provide assistance with product selection, installation, maintenance, trouble-shooting, and performance evaluation. We strive to provide the highest level of service and customer satisfaction.
Packing and Shipping:
Cylindrical roller bearings are securely packaged and shipped in strong boxes to ensure the safe arrival of the product to its destination. The boxes are then placed in high-strength outer packaging to protect the product during transit. The outer packaging must be clearly labeled with the appropriate shipping information.
FAQ:
Q1:What is the Brand Name of Cylindrical Roller Bearing?
A1:The Brand Name of Cylindrical Roller Bearing is DJTech or OEM, TNT, SKF, Koyo ,FAG , NSK,INA,IKO,TIMKEN.
Q2:What is the Model Number of Cylindrical Roller Bearing?
A2:The Model Number of Cylindrical Roller Bearing is NU series ,NNU series ,NN series.
Q3:Where is the Place of Origin of Cylindrical Roller Bearing?
A3:The Place of Origin of Cylindrical Roller Bearing is China.
Q4:What is the Certification of Cylindrical Roller Bearing?
A4:The Certification of Cylindrical Roller Bearing is ISO9001-2015/SGS/BV/CE/IAF.
Q5:What is the Minimum Order Quantity of Cylindrical Roller Bearing?
A5:The Minimum Order Quantity of Cylindrical Roller Bearing is 10.
