Single Row Angular Contact Ball Bearings can only withstand axial load in one direction .When a radial load is applied, an additional axial force is induced.and can only limit the axial or housing to do displacement of the shaft in one direction.
Two row Angular Contact Ball Bearings can withstand a larger radial load-based radial and axial combined load and torque load , limit the axial displacement of the shaft in both directions.It has limited inclinability of Inside the bearing, between the outer rings of Two row angular conatact ball bearings in component that limits biaxial displacement of the shaft and housing.
Angular Contact Ball Bearings has 7000C type , 7000AC type and 7000B type .

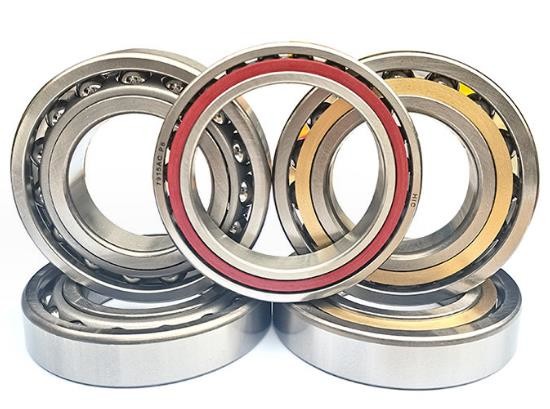

Angular Contact Ball Bearings are a type of roller-bearing that are angularly-contacted by balls, which are made of steel or brass. These bearings are specifically designed to support combined loads, which are both radial and axial. They are suitable for use in high speed applications with a maximum limited speed for grease lubrication of 1300 to 10000 rotations per minute. Angular Contact Ball Bearings come in multiple models, including QJXXXX Series, 618xx Series, 619xx Series, 718xx Series, and 719xx Series, with outer diameters ranging from 125 to 380 mm. These bearings can be lubricated with either grease or oil.
| Property | Value |
|---|---|
| Rated static load (Cor) | 21.2~ 1020 KN |
| Lubrication | Grease, Oil |
| Width | 13~75mm |
| External diameter | 125~380MM |
| Material | Steel |
| Seals | Open |
| Max. limited speed for oil lubrication | 1600 ~14000 R/min For Oil Lubrication |
| Inner Diameter | 100~280mm |
| Type | Angular Contact Ball Bearing |
Angular Contact Ball Bearing is a type of bearing that has an inner and outer ring and balls that are separated by a cage. Angular Contact Ball Bearings are designed to support high radial and axial loads and are ideal for high speed and high accuracy applications. It is available with various brands, such as SKF ,FAG , INA. and model numbers, including QJXXX series, 618XX Series, 619XX Series, 718XX Series, 719XX Series. It is certified with ISO9001-2015/SGS/BV/CE/IAF, and the minimum order quantity is 50. The price is negotiable and it comes with independent packing. The delivery time is about 3~4 weeks and payment terms are T/T in advance. The supply ability is 7.5KKPCS/Month and the outer diameter is 125~380mm with steel or brass cage. The angular contact ball bearing has a maximum limited speed for oil lubrication of 1600 ~14000 R/min, and a maximum limited speed for grease lubrication of 1300~10000 R/min. It is available in separable or inseparable type.
We offer custom services for Angular-Contact Ball Bearing, Angular-Contacted Roller Bearing, and Angularly-Contact Ball Bearing.
Angular Contact Ball Bearing technical support and services include:
Packaging and Shipping for Angular Contact Ball Bearing:
Angular Contact Ball Bearings are typically packaged in a cardboard box filled with foam to ensure protection from external elements during shipping. Each box contains one bearing and is labeled with the type, size, and quantity of the bearing. All boxes are placed into a larger cardboard box for shipping.
