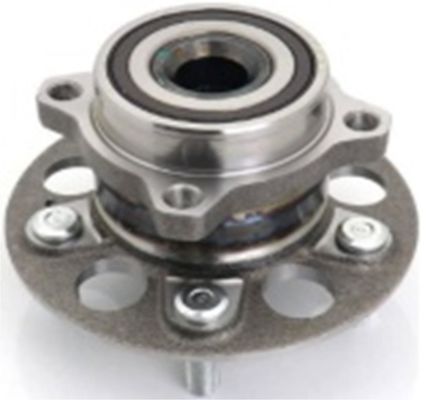

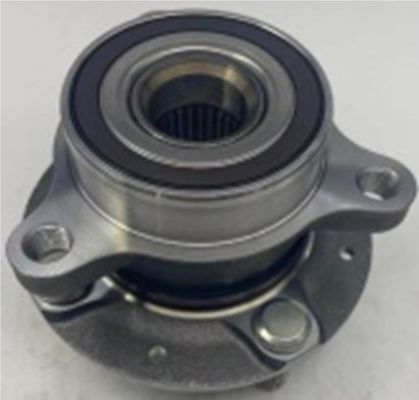

42200-TLA-A51 Wheel Hub Bearing , Angular-Contact Ball Bearing For HONDA CR-V 4WD 2017-2021

10
MOQ
Negotiable
Price
42200-TLA-A51 Wheel Hub Bearing , Angular-Contact Ball Bearing For HONDA CR-V 4WD 2017-2021
Features Gallery Product Description Request A Quote
Features
Specifications
Seals: Sealed
Max.limited Speed For Grease Lubrication: HDS-2
Precision Grade: P0、P6、P5、P4、P2
Clearance: C5,C4,C3,C0 ,C2
Lubrication: Grease , Oil
N.W.: 0.37 Kg
Cage: Steel Or Brass
Material: Steel
Highlight:

HONDA CR-V Angular Contact Ball Bearing

,

HONDA CR-V 4WD Ball Bearing

,

42200-TLA-A51 Wheel Hub Bearing

Basic Infomation
Place of Origin: China
Brand Name: SKF, FAG , INA, LYC
Certification: ISO9001-2015/SGS
Model Number: 42200-TLA-A51
Payment & Shipping Terms
Packaging Details: Standard packing
Delivery Time: based on quantity
Payment Terms: T/T in advance
Supply Ability: 7.5KKPCS/Month
Product Description
42200-TLA-A51 Wheel Hub Bearing Angular-Contact Ball Bearing For HONDA CR-V 4WD 2017-2021
Product Overview

High-quality angular contact ball bearing designed for industrial applications, specifically compatible with HONDA CR-V 4WD models from 2017-2021. This sealed bearing offers exceptional performance and durability with multiple clearance options and high-speed capabilities.

Key Specifications
Attribute Value
Model 42200-TLA-A51
Type Angular Contact Ball Bearing
Outer Diameter 50 mm
Width 18 mm
Rated Static Load (Cor) 5.2 KN
Rated Dynamic Load (Cr) 9.8 KN
Max Speed (Grease) 6700 R/min
Max Speed (Oil) 5400 R/min
Precision Grade P0, P6, P5, P4, P2
Clearance C5, C4, C3, C0, C2
Material Steel
Cage Steel or Brass
Lubrication Grease, Oil
Seals Sealed
Net Weight 0.37 Kg
Key Features
  • High static load capacity (5.2 KN) for demanding applications
  • Multiple clearance options for flexible installation
  • High-speed capability (6700 R/min with grease lubrication)
  • Sealed design for enhanced protection against contaminants
  • Precision grades available from P0 to P2
  • Durable steel construction with steel or brass cage options
Applications

This angular contact ball bearing is suitable for various industrial applications including:

  • Automotive: Vehicle transmissions and differentials (specifically HONDA CR-V 4WD 2017-2021)
  • Machine tools: High precision spindle applications
  • Aerospace: Landing gear systems
  • Robotics: Precision movement in arms and joints
  • Wind turbines: Gearbox applications
Ordering Information
Brand Options
SKF, FAG, INA, LYC
Place of Origin
China
Certification
ISO9001-2015/SGS
Minimum Order
10 units
Supply Ability
7.5KKPCS/Month
Payment Terms
T/T in advance
Packaging
Standard packing
Support & Services

Comprehensive technical support including installation guidance, maintenance advice, and troubleshooting assistance. We provide detailed product documentation and training sessions to ensure optimal performance.

Frequently Asked Questions
What brands are available for this bearing?

This bearing is available under SKF, FAG, INA, or LYC brands.

What certifications does this product have?

The bearing is certified with ISO9001-2015/SGS standards.

What is the minimum order quantity?

The minimum order quantity is 10 pieces.
