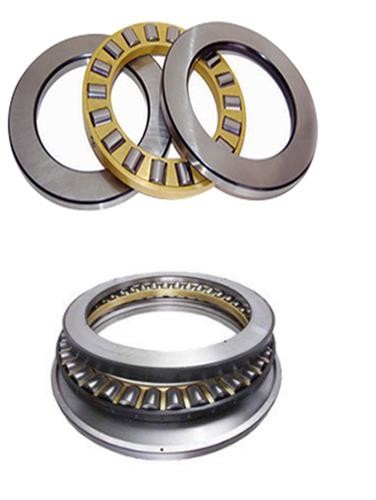

SGS Durable Roller Thrust Bearing , Thickness 48mm Spherical Roller Bearing

  • SGS Durable Roller Thrust Bearing , Thickness 48mm Spherical Roller Bearing
Place of Origin China
Brand Name DJTECH
Certification ISO9001-2015/SGS/BV/CE/IAF
Model Number TTSV150, TTSV Series , TTSX Series
Minimum Order Quantity 50
Delivery Time about 3~4weeks
Payment Terms T/T
Supply Ability 250000pcs/per day

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Model Name TTSV Series , TTSX Series Material SAE52100、AISIE52100、UNSG52986 Steel
OD 150mm ID 127mm
Thickness 48mm Rated Load Coa: 1630
N.W. 5KG Precision Grade ABEC-5
Highlight

SGS Roller Thrust Bearing

,

Durable Roller Thrust Bearing

,

48mm Spherical Roller Bearing
Leave a Message
Product Description

Thrust Roller Bearing, OD : 157mm, ID:127mm, Thickness: 48mm , Model TTSV150 Series



Product description:





The main structural characteristics of bidirectional thrust angular contact ball bearings are that they can withstand both axial and radial loads, making them suitable for high speed applications.



The bidirectional thrust angular contact ball bearing is mainly used in the thrust part of the work roll of high-speed aluminum foil rolling mill, with advantages such as stable rotation and long service life.



Parameter :



Overall dimensions RATED LOAD model weight
mm kN Current model Old model kg
D D1 d1 T R M 1 M 2 rmin Coa
150 148 127 48 228.6 M12 - 1.5 1630 TTSV150 4297/150 5
175 173 152 53 228.6 M12 - 1.5 2180 TTSV175 4297/175 8
203 201 178 65 254 M12 - 1.5 2540 TTSV203 4297/203 11
205 203 178 65 254 M20 - 1.5 3370 TTSV205 4297/205 15
235 233 208 73 280 M20 - 1.5 3370 TTSV235 4297/235 18
265 263 229 81 304.8 M20 - 1.5 4130 TTSV265 4297/265 24
320 318 280 95 380 M24 - 1.5 7370 TTSV320 4297/320 42
377 375 330 112 457.2 M24 - 2.5 8230 TTSV377 4297/377 86
380 378 330 112 457.2 M24 M30 1.5 8220 TTSV380 4297/380 67
410 408 355 122 508 M24 M30 3 11300 TTSV410 4297/410 115
440 438 380 130 508 M24 M36 3 18500 TTSV440 4297/440 140
495 492 432 146 558.8 M24 M36 3 19100 TTSV495 4297/495 198
525 522 460 155 635 M24 M36 3 20380 TTSV525 4297/525 210
555 552 482 165 635 M24 M36 3 21380 TTSV555 4297/555 275
580 577 510 165 710 M24 M42 3 23540 TTSV580 4297/580 250
610 607 533 178 762 M30 M42 3 24170 TTSV610 4297/610 350
640 637 550 185 762 M30 M42 3 28670 TTSV640 4297/640

410



Overall dimensions RATED LOAD model weight
mm kN Current model Old model kg
D D1 d1 T R M 1 M 2 rmin Coa
150 148 127 55 457.2 M12 - 1.5 1630 TTSX150 4379/150 7
175 173 152 62 457 M12 - 1.5 2180 TTSX175 4379/175 11
205 203 178 76 508 M20 - 1.5 2540 TTSX205 4379/205 18
235 233 208 85 560 M20 - 1.5 3370 TTSX235 4379/235 26
265 263 229 95 609.6 M20 - 1.5 4130 TTSX265 4379/265 37
320 318 280 112 762 M20 - 2.5 7370 TTSX320 4379/320 62
380 378 330 129 914.4 M24 M30 1.5 8550 TTSX380 4379/380 101
410 408 355 142 1016 M24 M30 3 11300 TTSX410 4379/410 130
440 438 380 152 1016 M24 M36 3 18500 TTSX440 4379/440 160
495 492 432 172 1066.8 M24 M36 3 19100 TTSX495 4379/495 210
525 522 460 180 1270 M24 M36 3 20380 TTSX525 4379/525 250
555 552 482 192 1270 M24 M36 3 21380 TTSX555 4379/555 280
580 577 510 195 1422.4 M24 M36 3 21540 TTSX580 4379/580 310
610 607 533 205 1520 M30 M42 3 24170 TTSX610 4379/610 410
640 637 550 214.8 1740 M30 M42 3 28670 TTSX640 4379/640 450
710 705 610 250 1600 M30 M42 4 31540 TTSX710 4379/710 850
750 745 650 260 1600 M30 M48 4 38430 TTSX750 4379/750 750
800 795 700 270 1700 M30 M48 5 40150 TTSX800 4379/800 930
